FLImagingCLR::ImageProcessing::CCrop Class Reference

class that crops an image to fit the ROI area.
More...

#include <Crop.h>

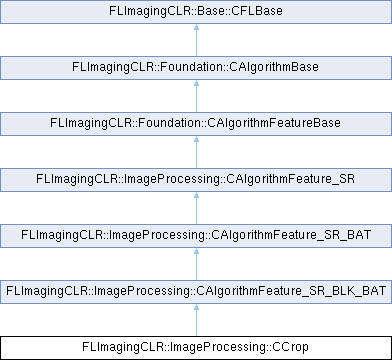

Inheritance diagram for FLImagingCLR::ImageProcessing::CCrop:

Public Member Functions
	CCrop ()
	CCrop (CCrop^ pCrop)
virtual	~CCrop ()
virtual CResult ^	Assign (CCrop^ pCrop)
virtual CResult ^	Execute () override
virtual CResult ^	Clear () override
Public Member Functions inherited from FLImagingCLR::ImageProcessing::CAlgorithmFeature_SR_BLK_BAT
virtual CResult ^	Assign (CAlgorithmFeature_SR_BLK_BAT^ pAib)
virtual CResult ^	SetBlankColor (double f64BlankColor)
virtual CResult ^	SetBlankColor (Base::CMultiVar< double >^ pMvBlankColor)
virtual Base::CMultiVar< double > ^	GetBlankColor ()
Public Member Functions inherited from FLImagingCLR::ImageProcessing::CAlgorithmFeature_SR_BAT
virtual CResult ^	Assign (CAlgorithmFeature_SR_BAT^ pAib)
Public Member Functions inherited from FLImagingCLR::ImageProcessing::CAlgorithmFeature_SR
virtual CResult ^	Assign (CAlgorithmFeature_SR^ pAib)
virtual CResult ^	SetSourceROI (Foundation::CFLFigure^ pFlfSourceROI)
virtual Foundation::CFLFigure ^	GetSourceROI ()
Public Member Functions inherited from FLImagingCLR::Foundation::CAlgorithmFeatureBase
virtual	~CAlgorithmFeatureBase ()
virtual CResult ^	SetSourceImage (Base::CFLImage^% pFliSource)
virtual Base::CFLImage ^	GetSourceImage ()
virtual void	SetROIUtilities (CROIUtilities^ pROIUtilities)
virtual void	SetROIUtilities (CAlgorithmFeatureBase^ pAlgorithmFeatureBase)
virtual CROIUtilities ^	GetROIUtilities ()
virtual CResult ^	Assign (CAlgorithmFeatureBase^ pAlgorithmFeatureBase)
virtual double	GetLastExecutionTimeInMilliSecond ()
virtual double	GetLastExecutionTimeInMicroSecond ()
virtual CResult ^	ReportToCSV (CReportDescriptor^ pWrd)
	The execution result of the algorithm is recorded in a file according to the options recorded in the ReportDescriptor object. Not all algorithms support this function. If not supported, return EResult.DidNotImplement.
virtual CResult ^	EnableThreadSynchronization (bool bEnable)
virtual bool	IsThreadSynchronizationEnabled ()
virtual CResult ^	EnableImageFigureTransformation (bool bEnable)
virtual bool	IsImageFigureTransformationEnabled ()
virtual int64_t	GetRequiredGPUMemory () override
Public Member Functions inherited from FLImagingCLR::Foundation::CAlgorithmBase
virtual	~CAlgorithmBase ()
virtual CResult ^	Assign (CAlgorithmBase^ pPufb)
virtual EProcessingUnitFeatures	GetOptimalProcessingUnit ()
virtual int32_t	GetOptimalThreadCount ()
Public Member Functions inherited from FLImagingCLR::Base::CFLBase
virtual	~CFLBase ()
	Destructor.
	!CFLBase ()
	Destructor.
virtual CProcessingUnitBase ^	GetProcessingUnit ()
	Returns the set ProcessingUnit.
virtual CResult ^	SetProcessingUnit (CProcessingUnitBase^ pPub)
	set the ProcessingUnit
virtual void	ResetProcessingUnit ()
	Rest the ProcessingUnit.
virtual bool	IsValid ()
	Validate the object.
virtual void	OnReceiveBroadcast (CBroadcastMessage^ pMessage)
	Callback function. A function that receives a BroadcastMessage.
void	Lock ()
	Set a lock on an object.
bool	TryLock ()
	Try to lock the object.
void	Unlock ()
	Unlock the object.
virtual CFLBase ^	DuplicateObject ()
	Duplicate an object identical to itself.
virtual CFLBase ^	CreateNewObject ()
	Creating an object of the same type as oneself.
virtual bool	IsLicenseAvailable ()
	Returns whether the algorithm can be used with the current license.

Detailed Description

class that crops an image to fit the ROI area.

Crop the image to fit the ROI area.

Constructor & Destructor Documentation

CCrop() [1/2]

FLImagingCLR::ImageProcessing::CCrop::CCrop

(

)

Default constructor

CCrop() [2/2]

FLImagingCLR::ImageProcessing::CCrop::CCrop

(

CCrop^

pCrop

)

Copy constructor by pointer

~CCrop()

virtual FLImagingCLR::ImageProcessing::CCrop::~CCrop ( )

virtual

Destructor

Member Function Documentation

Assign()

virtual CResult ^ FLImagingCLR::ImageProcessing::CCrop::Assign ( CCrop^ pCrop )

virtual

Assign another CCrop object. (By Pointer)

Parameters

[in]

pCrop

Pointer of CCrop

Return values

FLImagingCLR::CResult^

Information about execution results

See also

FLImagingCLR::ImageProcessing::CCrop

Clear()

virtual CResult ^ FLImagingCLR::ImageProcessing::CCrop::Clear ( )

overridevirtual

Clear the object to the same state as the initial creation state.

Return values

FLImagingCLR::CResult^

Information about execution results

See also

FLImagingCLR::CResult

Reimplemented from FLImagingCLR::ImageProcessing::CAlgorithmFeature_SR_BLK_BAT.

Execute()

virtual CResult ^ FLImagingCLR::ImageProcessing::CCrop::Execute ( )

overridevirtual

Main procedure executor

Return values

FLImagingCLR::CResult^

If function is successful, return EResult.OK If function is fail, return corresponding error enum

See also

FLImagingCLR::CResult

Reimplemented from FLImagingCLR::Foundation::CAlgorithmFeatureBase.
